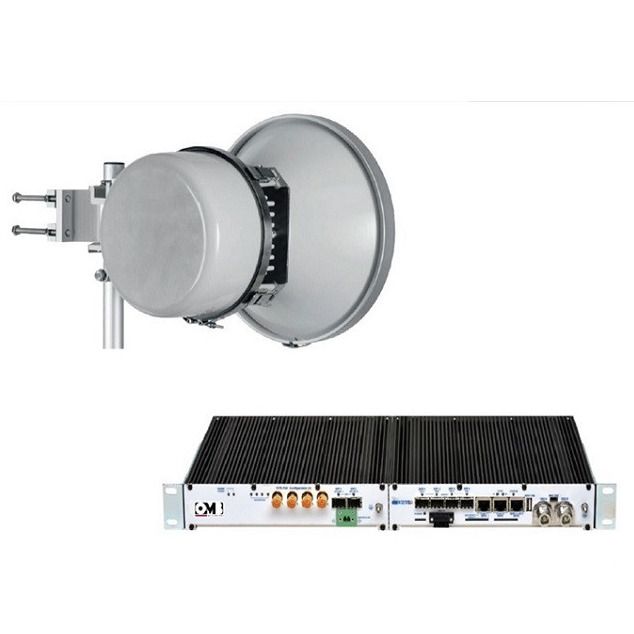

DIGITAL MICROWAVE LINK - DMWL 1000

MAIN CHARACTERISTICS - Up to 2Gbps aggregate capacity. - Available modulation schemes: QPSK/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/1024QAM. - Available channel bandwidth: ETSI standards 7/14/28/40/56/80/112MHz; ANSI standards 10/20/25/30/40/50/60/80/120MHz. - Up to 1Gbps throughput over a single channel at 1024QAM. - Integrated XPIC mechanism. - Customer network data interface: 3 x RJ Gigabit Ethernet (100/1000 base-T), 4 x SFP (1000 base SX/LX). - Two USB ports for connecting USB-flash disk or PC. - “In-band”/”out-of-band” management. - Support of RADIUS server authentication for users remote access. - FEC: Forward Error Correction with RS coding. - Hitless and errorless adaptive coding & modulation (ACM) with dynamic capacity allocation and priority data transmission (PBPS: packet based priority system). - Online Ethernet packet compression with reduced length of frames allowing throughput efficiency increase up to 25%. - NAT, PROXY ARP support for effective IP management setup. - Large range of system and Ethernet counters. - Adaptative power control ATCP. - Built in network management system (NMS): http, https, SNMP v1/2/3, TELNET, SSH. - Built in bit error rate (BER) tester and built in spectrum analyzer. - Integrated synchronization solution optional. - AES-128/256 encryption for data confidentiality optional. SYSTEM ADVANTAGES - Point to point fixed and mobile links carrying data, voice and HD video. - Telco and broadcasting transport networks. - Enterprise and private MW networks: OIL&GAS – WISP – UTILITIES – HEALTHCARE – DISASTER RECOVERY. - High capacity backhaul and backbone critical communications infrastructures. - Ultra high speed MW links.
